Comet YXLON
A Global Leader in X-ray and CT Inspection
Comet Yxlon designs and manufactures high-end X-ray and CT system solutions for industrial environments
Key Features:
• Open tube Design
• Automatic Void Calculation
• 1 Click Inspections and Programmable inspection
• Industry leading software, and laminography (2.5D) packages

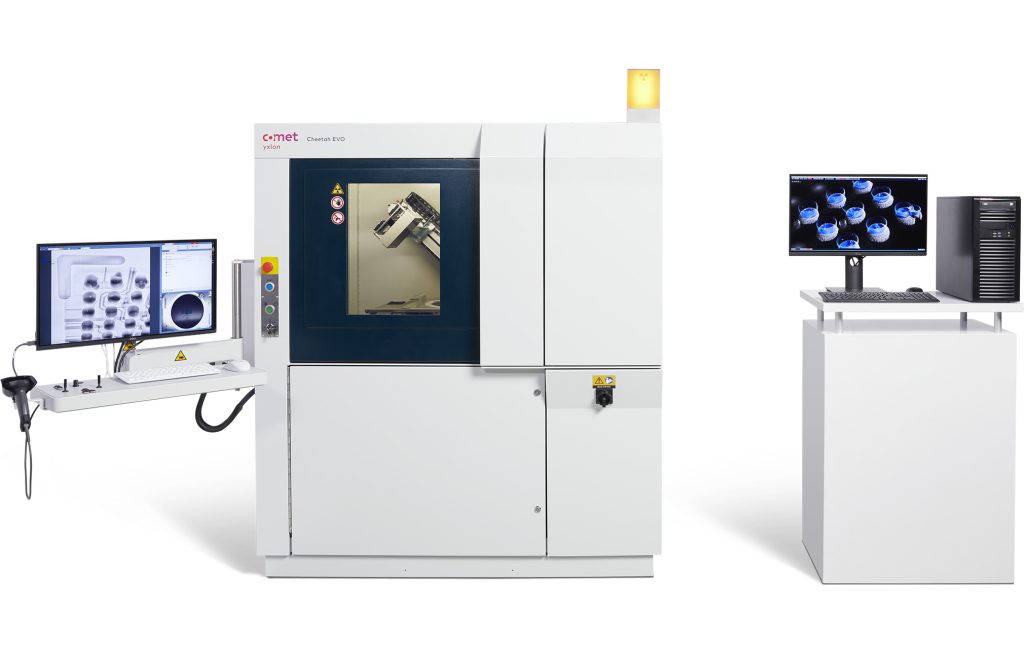

CheetahEVO / CougarEVO
The Cheetah and Cougar EVO deliver efficient inspections with crystal clear images for SMT, semiconductors, and labs, combining an open tube design, innovative visualization software, and smart workflows like VoidInspect.
Key Features:
• Open Tube Design – Never replace your tube for the life of the system
• High-Detail Resolution & Laminography – Submicron-level 2D, 2.5D, and 3D imaging, with Micro3Dslice enabling automated slice-by-slice laminography analysis in under 40 seconds per part.
• Automated Inspection & Software – Assisted Review – VoidInspect, THTInspect DR, automated BGA inspection, and FNC scripting standardize and streamline repetitive SMT test tasks.
• CheetahEVO offers large substrate size while the CougarEVO is a 1meter square compact system ideal for lab environments.
• Optional High Load Capacity (≤20 kg) – Reinforced mechanics and sample table allow multiple parts or fixed-package interconnects to be inspected at once.
• Dragonfly 3D View & 3D World Software – Seamless 3D visualization with optional AI-powered image analysis for segmentation and quantification.

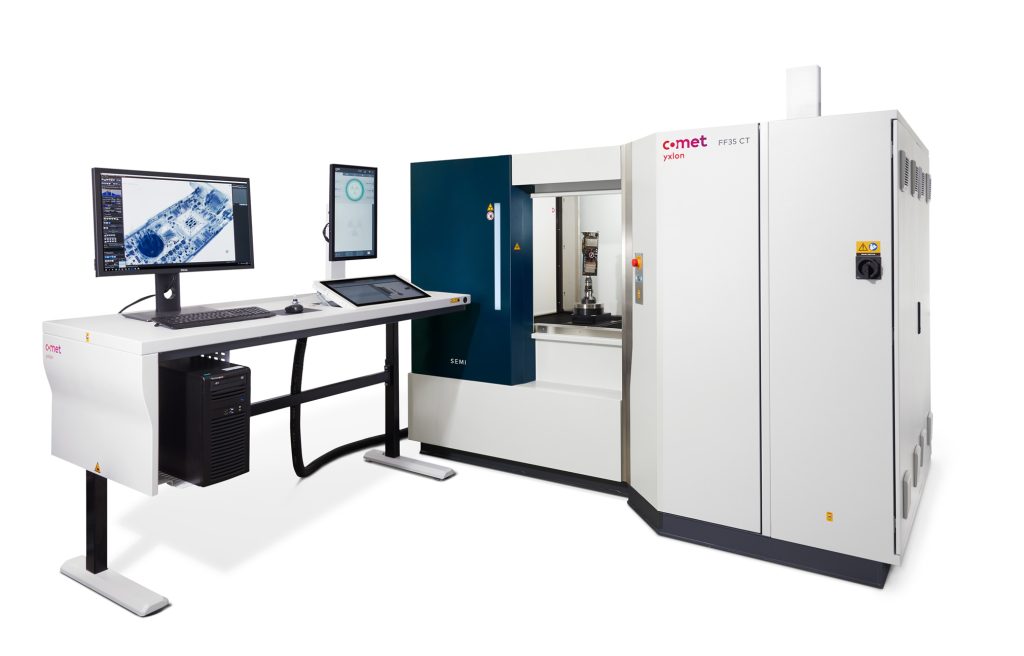

FF20/35/85
High-Resolution, Multi-Application CT for Science & Research
The FF35 CT offers a single or dual-tube configuration for highest versatility in laboratory micro-CT applications, backed by the new VistaX software packages.
Key Features:
• Dual-Tube Flexibility – A 225 kV micro-focus directional beam tube (320 W, water-cooled target, sub-minute CT scans, 4 µm resolution) pairs with an optional 190 kV nano-focus transmission tube for submicron resolution on parts 10 mm and smaller; each tube has its own generator and HV cable, so no reconfiguration is needed to switch.
• Large Field-of-View Detectors – The recommended 4343 CT flat-panel detector offers up to 432 x 432 mm active area, a 2,880 x 2,880 pixel matrix, and 150 µm pixel pitch.
• Ergonomic Geminy Interface – Automation, wizards, and presets guide operators of any skill level, with SmartGuard collision protection and a real-time Healthmonitor.
• Dynamic Scan – Tube moves in close and back out to rapidly CT scan large parts versus traditional smaller scans.
