ESE Printers

Economic & Smart Printer

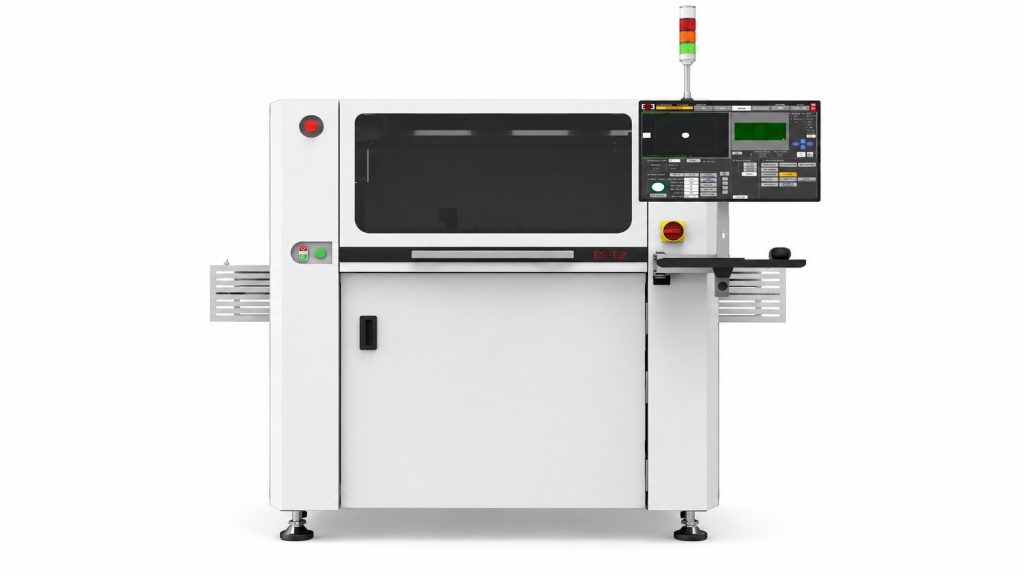

Developed from the US-2000X and 2000XQ platform, the ES-E2 and ES-E2+ deliver a scaled-up capacity and the most cost-effective model in the ESE line, with enhanced standard features and a stable, solid frame and table structure.

• Precision Table Design – Four ball screws and three LM guides precisely position and support the print table, keeping squeegee pressure even across the entire table width.

• High Accuracy – ES-E2 delivers ±12.5 micron alignment accuracy and ±25 micron wet printing repeatability at 6 sigma; ES-E2+ improves this to ±10 microns and ±20 microns.

• Fast Cycle Time – 10 seconds on the E2, 9 seconds on the E2+.

• Flexible Stencil & Substrate Range – Stencils from 550mm up to 736mm (29″), substrates from 50×50mm up to 550×510mm, at 0.1–6mm thickness.

• Advanced Cleaning System – Dual-vacuum paper cleaning with Standard, EcoSA, and Paperless modes for fast, cost-saving paper changes.

Qualified Flexible Large Printer

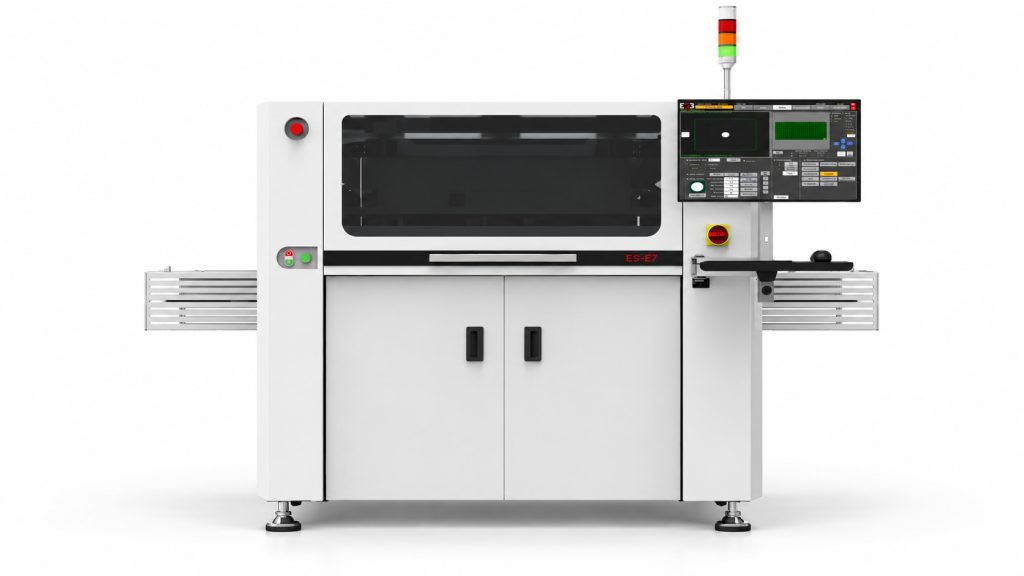

Built from the US-7000X platform on the E2’s proven printing repeatability, the ES-E7 handles PCBs up to 700mm × 610mm, while the ES-E8 extends coverage to LED, LCD, and substrates up to 850mm.

• Large-Format Capacity – E7 handles substrates up to 700×610mm; E8 extends to 850×610mm and up to 10kg of substrate weight.

• High Alignment Precision – ±12.5 micron alignment accuracy and ±25 micron wet print accuracy at 6 sigma (Cmk ≥ 2.0), verified by third-party measurement tooling.

• Standard 3-Stage Conveyor – Delivers the same high throughput as the E2 platform.

• Specialized Clamping – A side vacuum clamp tool kit supports precise board clamping and clean printing results even on warped boards.

E8’s flexible mask stencil size loading has made it a qualified large-format printer for leading LED and LCD manufacturers.

Inline Testing That Keeps Production Moving

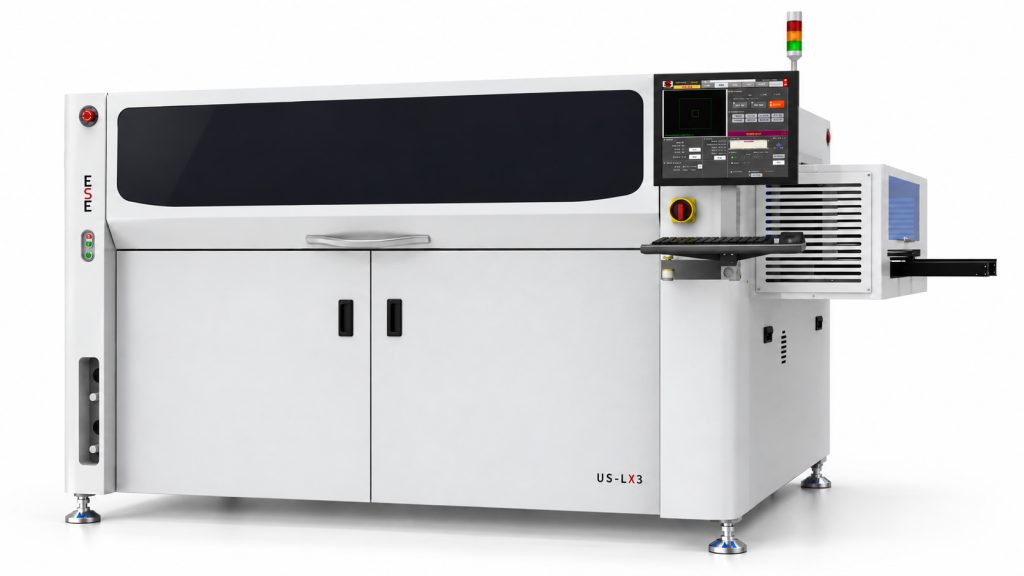

Based on the E8 platform, the US-LX1, LX3, and LX5 extend ESE’s large-format printing to substrates and stencils over a meter wide, serving leading LED and LCD customers.

• Progressive Sizing – LX1 handles substrates up to 1,000×650mm, LX3 up to 1,300×650mm, and LX5 up to 1,500×650mm, with stencil sizes reaching 1,800×980mm.

• Consistent Precision – ±12.5 micron alignment accuracy and ±25 micron printing repeatability at 3 sigma across all three models.

• Up to 10kg Substrate Handling – With flexible stencil size loading to match ESE standard configurations or customer requirements.

• Effective X-Direction Printing & Cleaning – Motion design optimized for large-format throughput.

The LX series brings the same standard clamping and printing quality as the E8 platform to the largest substrates in ESE’s lineup.

Ultimate Speed & Back-to-Back Printer

Built for the highest-throughput production lines, the ES-H1 and ES-H2 pair an ultimate cycle time as low as 5 seconds with qualified 15-micron printing repeatability, in a single or back-to-back configurable printer.

Key Features:

• Ultra-Fast Cycle Time – As low as 5 seconds core cycle time on the H2, and 6 seconds on the H1.

• High Precision – ±7.5 micron alignment accuracy and ±15 micron printing repeatability at 6 sigma (Cpk ≥ 2.0).

• Back-to-Back Configuration – An optional output/input conveyor shuttle system enables top-and-bottom printing on each lane, boosting flexibility for different products.

• Linear Motor-Driven Camera & Wiper – Ensures stable, fast operation across the standard 3-stage conveyor system.

H2’s optimized cycle time — including cleaning, under 10 seconds — sharply cuts production time for medium-size PCB lines.
