Smarter Thermal Control for Longer Tip Life

JBC’s Most Efficient Soldering System recovers tip temperature in as little as 2 seconds, allowing technicians to work confidently at lower temperatures. Combined with automatic Sleep & Hibernation Modes, JBC tools extend tip life up to 5 times longer than tips from other brands.

Key Features:

• Sleep Mode – Automatically lowers tip temperature below the solder melting point when the tool rests in the stand, preventing coating dissolution.
• Hibernation Mode – After a configurable period of inactivity, cuts power to the tip, letting it reach room temperature to prevent oxidation and save energy.
• Instantaneous Heating – A fully-integrated thermal sensor delivers 350°C/662°F recovery in 2 seconds for accurate, consistent control.
• Over 500 Cartridge Models – A vast range of tip shapes and sizes to match virtually any soldering application.

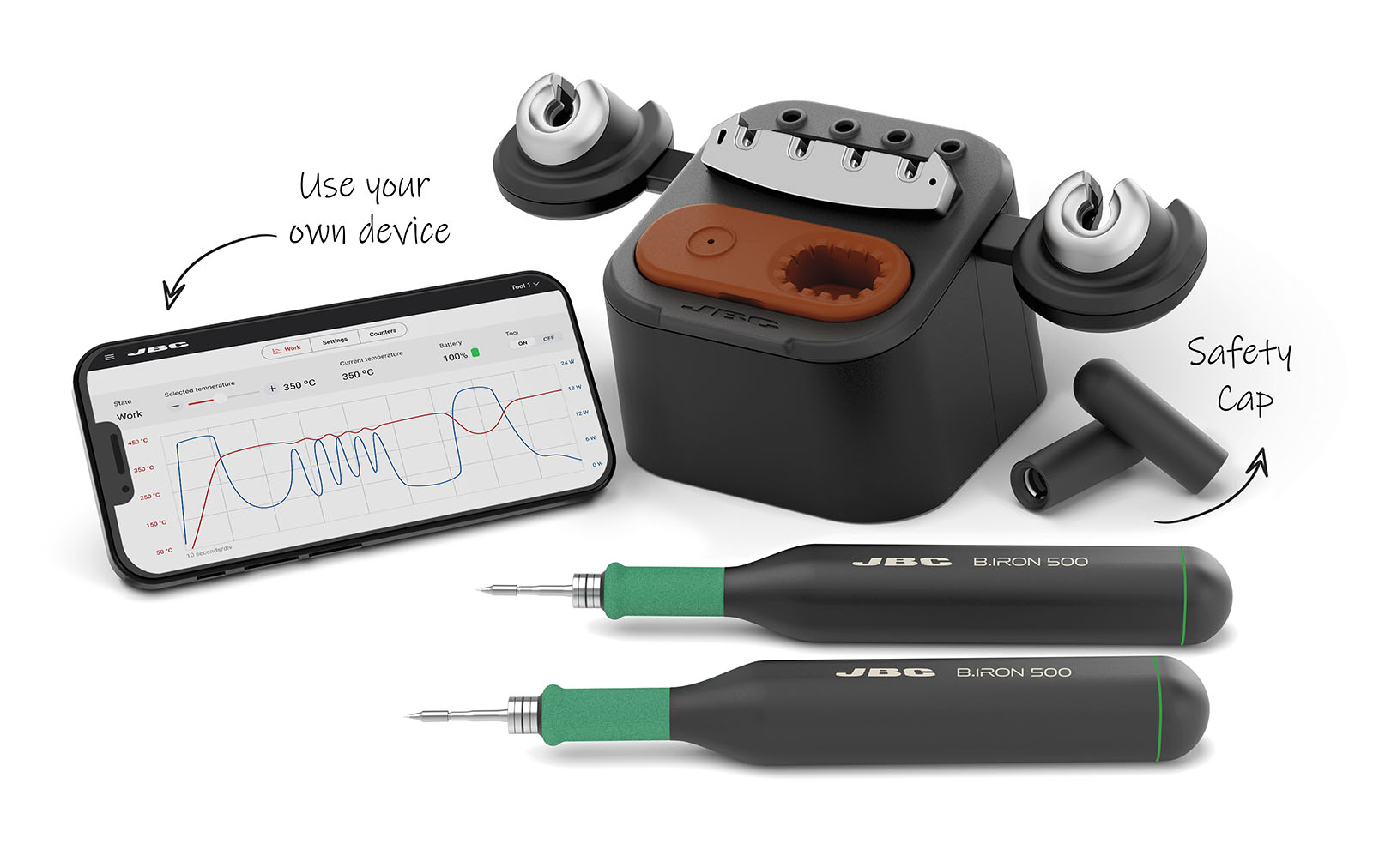

The B·IRON Battery-Powered System is the easiest way of soldering, offering an ergonomic tool designed to lie comfortably in the operator’s hand with no cable tethering the workflow.

Key Features:

• App-Based Control – Configure and control tool parameters from the B·IRON App or any personal device.
• Integrated Charging Stand – Fully charges the tool while resting in Hibernation Mode, preventing tip oxidation.
• Quick Cartridge Exchanger & Holder – Avoids damage to tips and keeps cartridges ready for fast exchange.
• Full Tool Range – Including B·NANO, B·TWEEZERS, B·100, and B·500, plus Dual variants for continuous mass-production work.

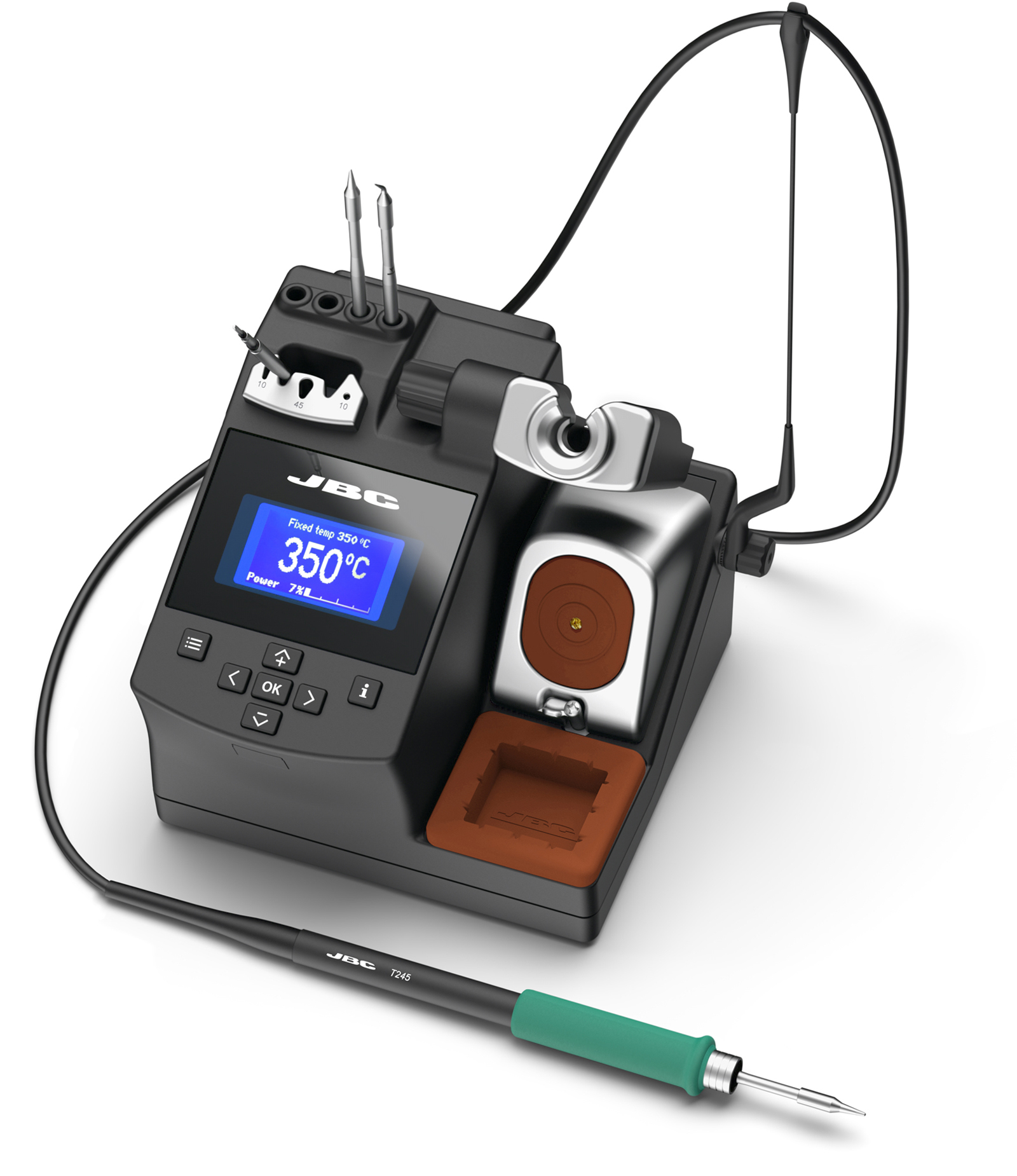

JBC’s Compact Stations cover the full spectrum of soldering, rework, and desoldering needs — from general electronics assembly to the most demanding micro-soldering jobs performed under a microscope.

Each Compact Station is purpose-built for a specific job, giving manufacturers a tailored solution for every stage of production.

Build a Custom Solution with Fully Compatible Tools

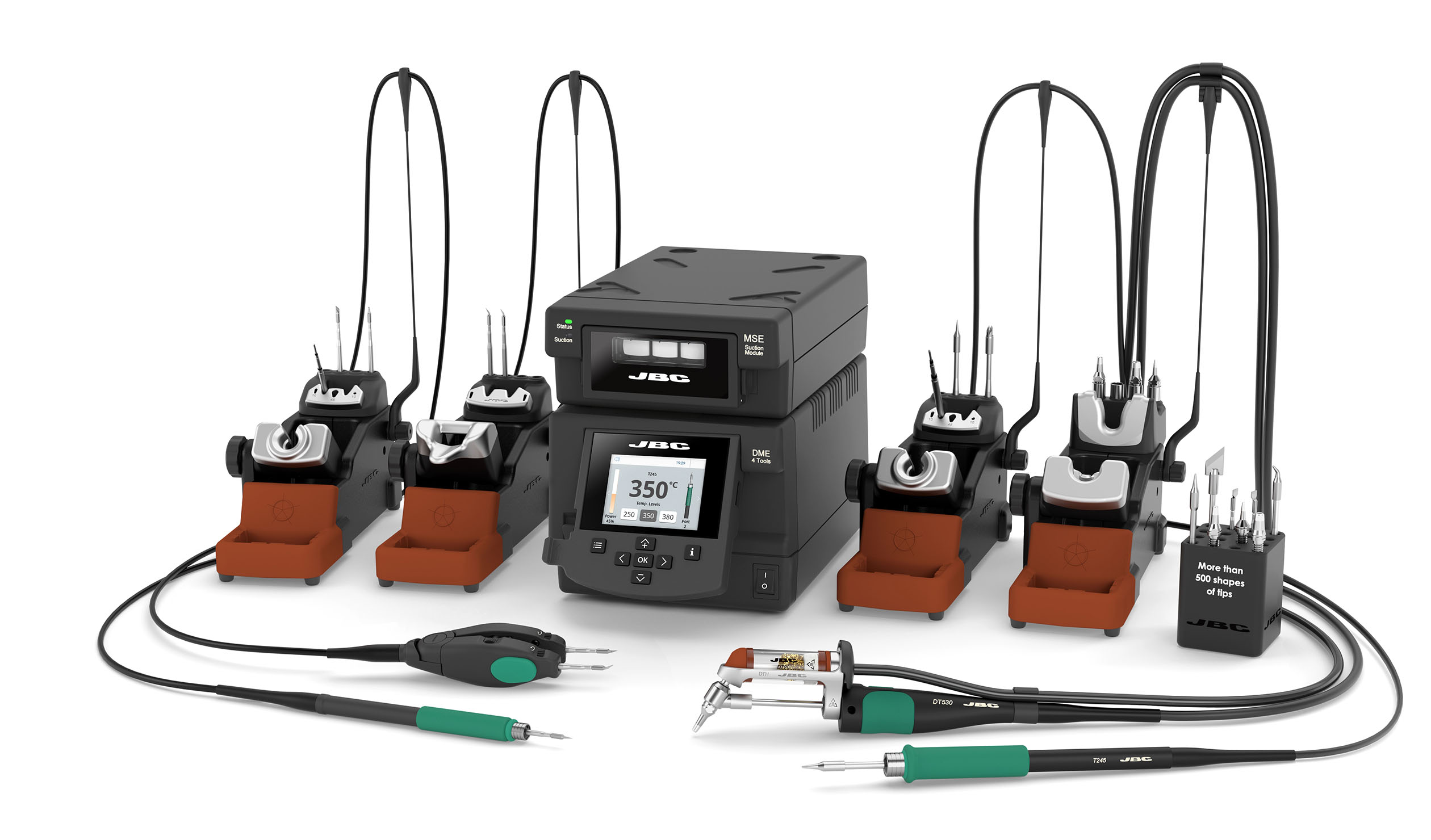

The JBC Modular System lets manufacturers scale their setup with 1-, 2-, or 4-tool control units, all sharing fully compatible tools, cartridges, and accessories.

Key Features:

• Scalable Control Units – DI (1 tool), DDE (2 tools at up to 150 W per port), and DME (4 tools, with USB microscope and file storage extras).
• Real-Time Graphics – Visualize tip temperature and delivered power throughout the soldering process.
• Tool Presets & Station Customization – Automatically apply saved parameters per tool and personalize settings per application.
• Station-PC Communication – Manage stations remotely, export graphics, and update software from a connected computer.
• Peripheral & Robot Compatibility – Connect pedals, nitrogen flow regulators, and desoldering modules, or automate the process entirely via robot.

The Modular System’s stackable design saves workspace while keeping every station fully upgradeable as production needs grow.

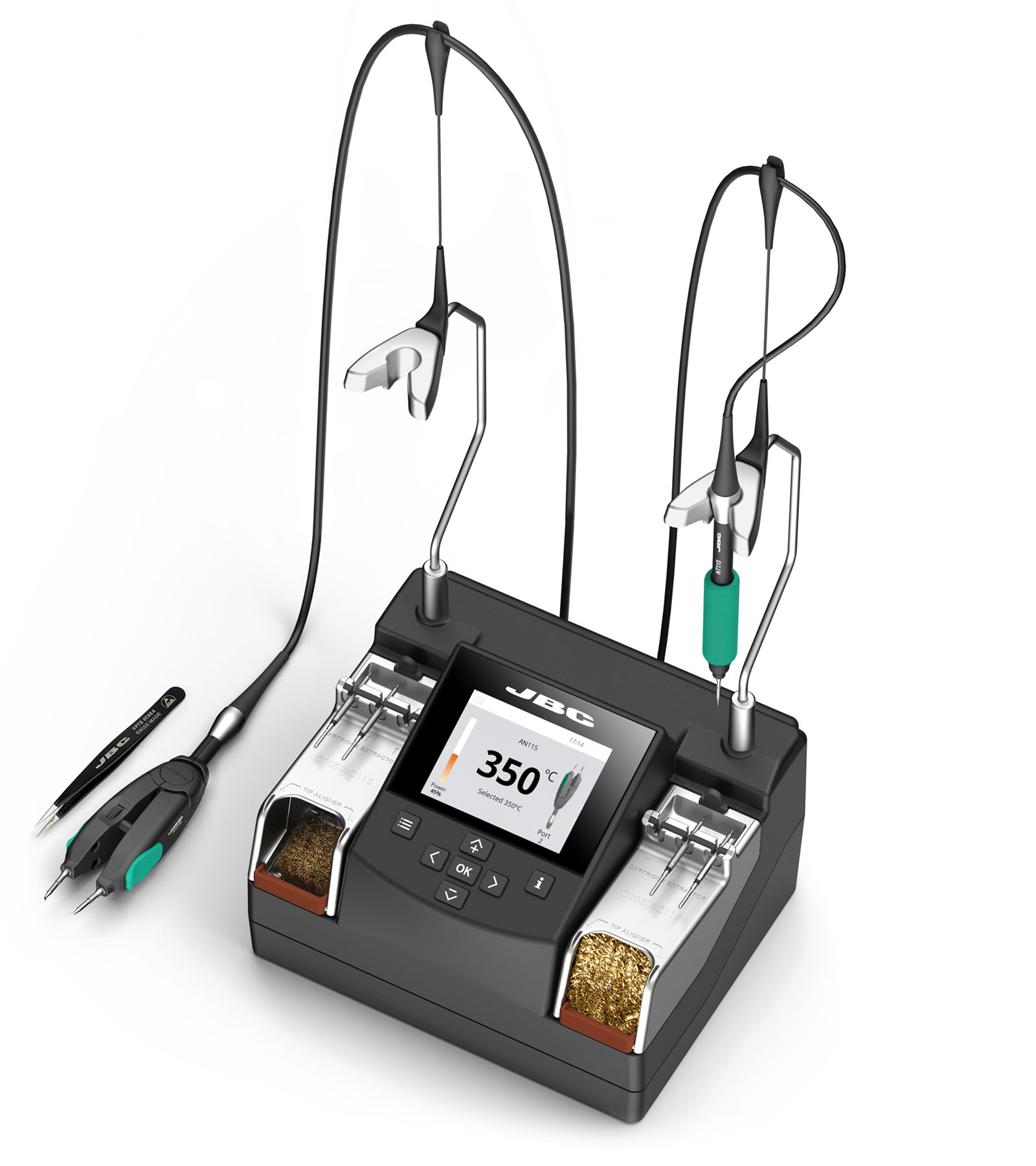

Designed for work under a magnifying glass, Nano Stations are the best solution for soldering and desoldering the smallest components, including 01005, 0201, and 0402 chips.

Key Features:

• NANE 2-Tool Soldering – 14 W peak power per tool with more than 30 cartridge shapes, built for the highest-precision SMD soldering.
• NASE 2-Tool Rework – Matching power and cartridge range, optimized for high-precision SMD rework.
• Most Efficient Soldering System – The same fast-recovery heat technology that improves soldering quality across the JBC range.

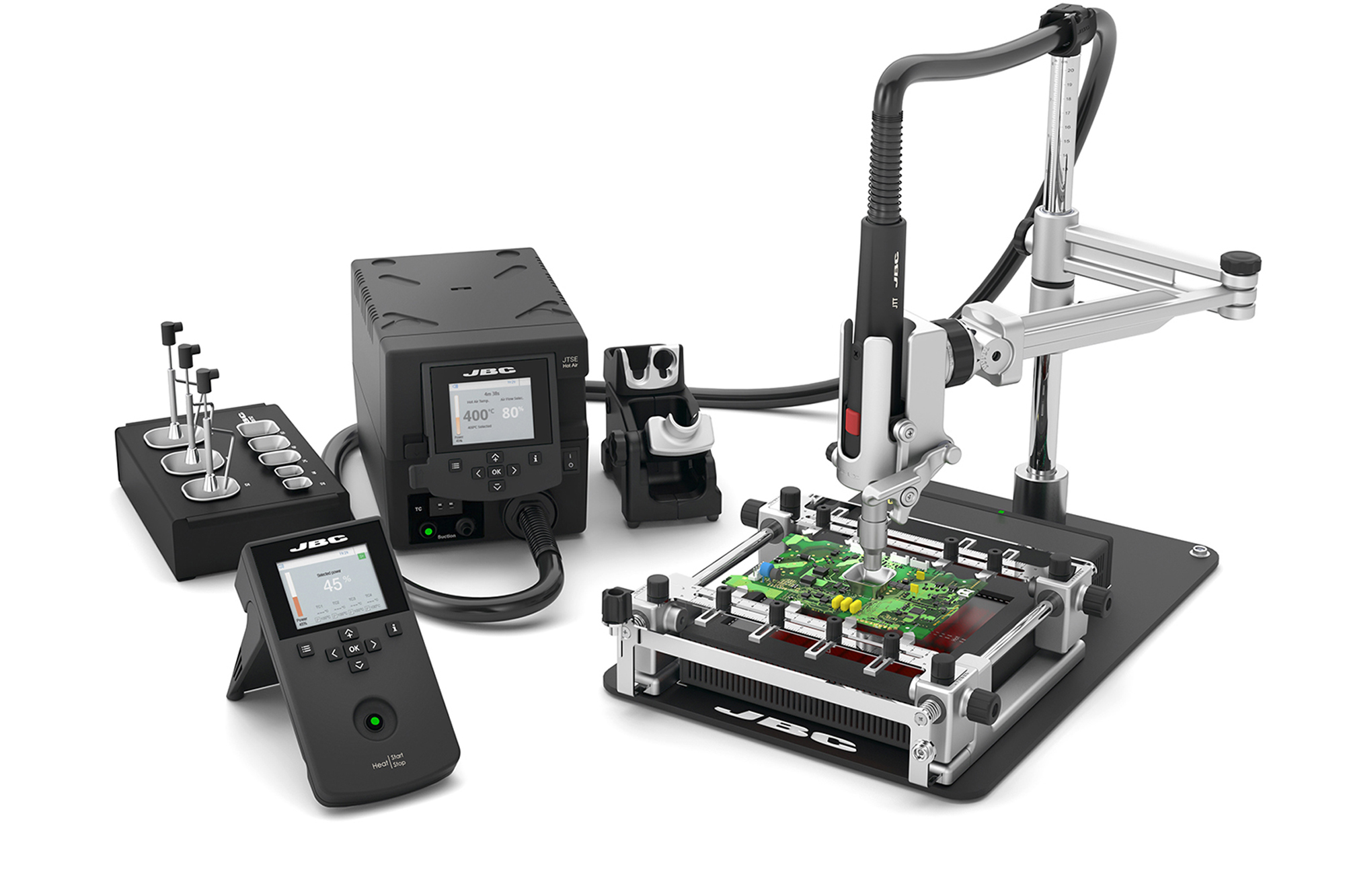

JBC’s Hot Air Stations give technicians full control over temperature and airflow when reworking SMDs, even on components with minimal separation from their neighbors.

Key Features:

• JTSE – A high-powered station with 700 W peak power.
• TESE – A precision station with 300 W peak power and 2–17 SLPM air flow, ideal for small and medium SMDs.
• External Thermocouple Connection – Enables high-precision, closed-loop control of the component or PCB during rework, available on both JTSE and TESE.
• JNA – Combines the NH handle with hot air cartridges for comfortable, high-precision work under a magnifying glass for 01005/0201 rework.

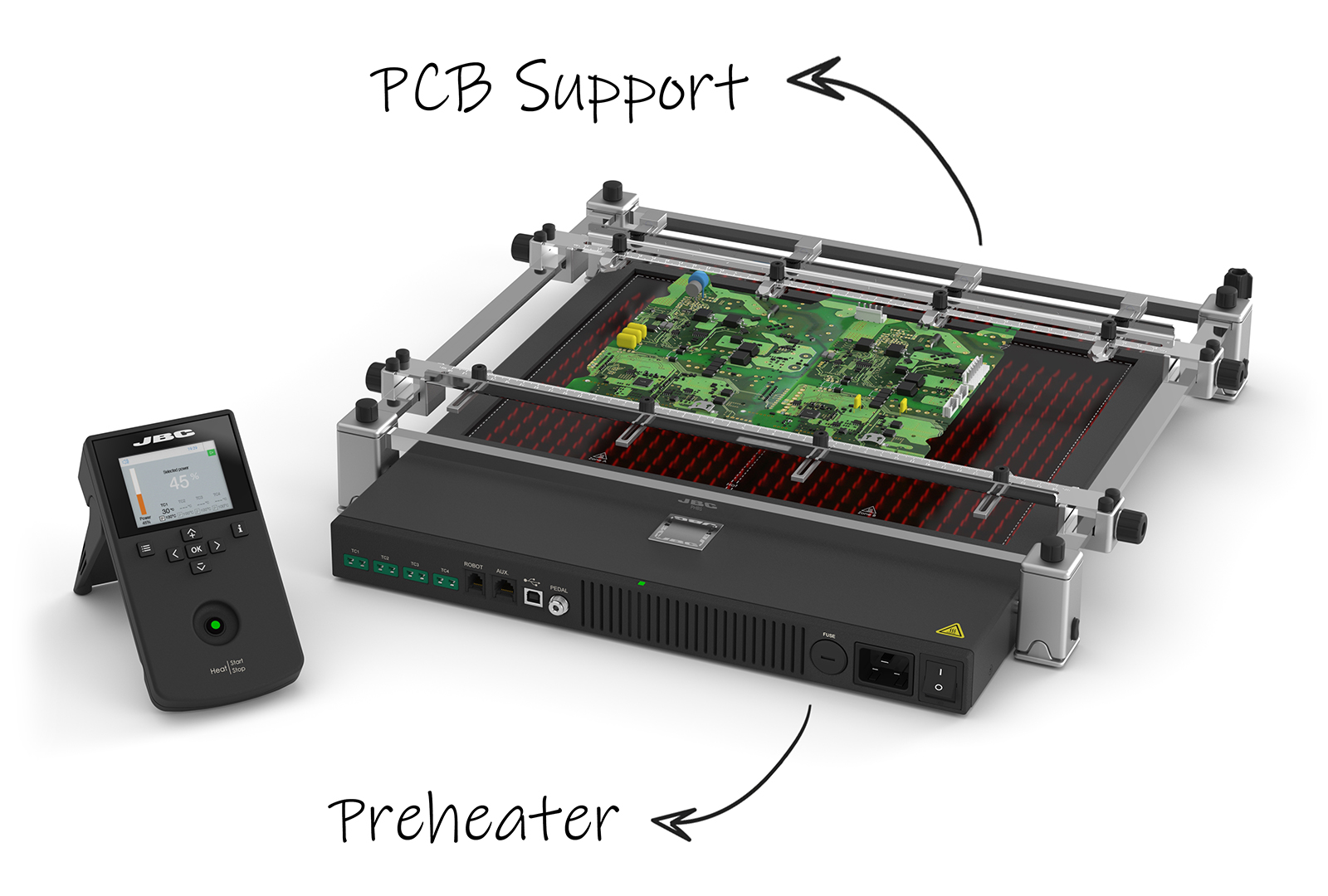

Powerful preheaters enable homogeneous heating throughout a substrate to reduce warpage, thermal stress, and Time Above Liquidous. Available in different sizes to support various workflows.

• PHNE – Preheats substrates up to 4x3in.
• PHSE – Preheats substrates up to 5x5in.
• PHBE – Preheats substrates up to 14x11in.
• PHXLE – Preheats substrates up to 20x24in.

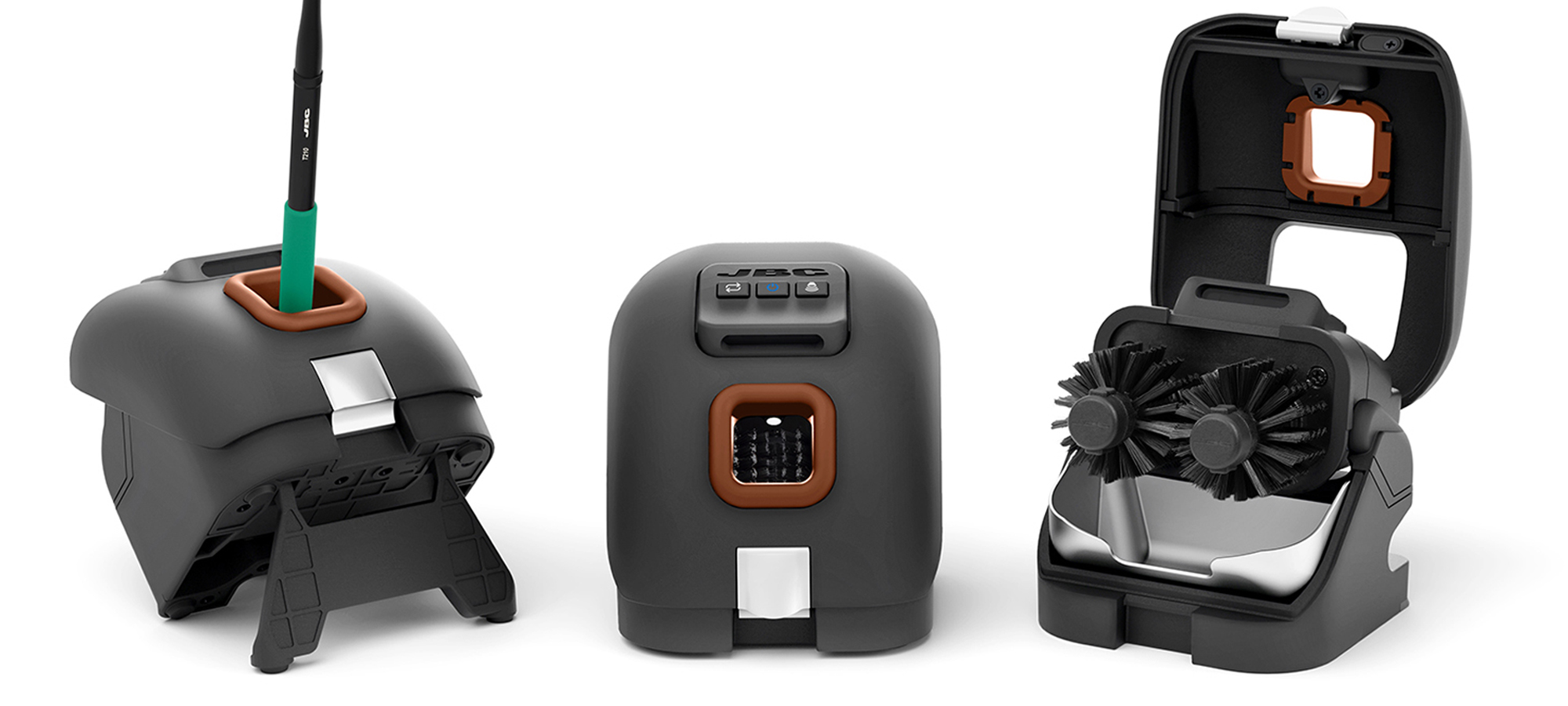

• CLMS & CLMUP Automatic Cleaners – Clean a tip in under a second using metal or non-metal fiber brushes, extending tip life with regular use.

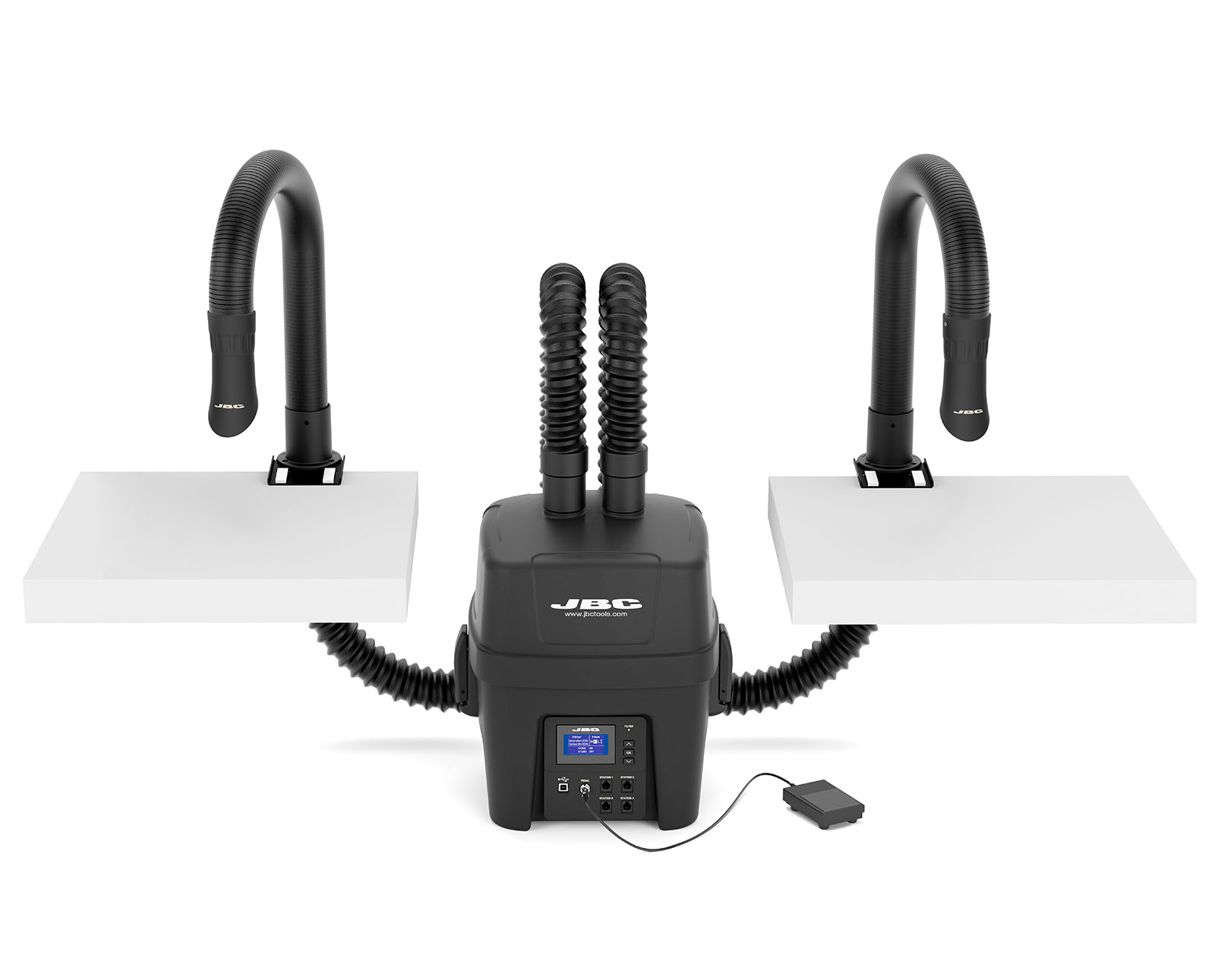

• FAE1 Fume Extractor – Offers 80 m³/h of aspiration per arm, optimizing fume extraction across two workbenches beyond industry standards.
• Automatic Operation – System turns on automatically when integrated into a JBC soldering station to extend filter life and eliminate the noise of a fan running constantly at a workstation.
• Configurable Airflow – Configurable from 1–4 workstations of airflow.
• Aspiration Connection – Funnels residual off-gassing from the soldering iron cradle into the fume extractor.
