Quik-Tool
The Gold Standard in Compliant SMT Support Tooling
Founded by industry veterans Jim Bernhard and Charlie Moncavage — the same team behind Ovation/Grid-lok — Quik-Tool brings decades of compliant tooling experience to a simple idea: support tooling shouldn’t slow a line down. Their automatic, pneumatically operated pin systems set up in seconds instead of the 10-20 minutes traditional hard tooling requires.
Compliant SMT Support Tooling
Automatic Setup That Eliminates the Guesswork

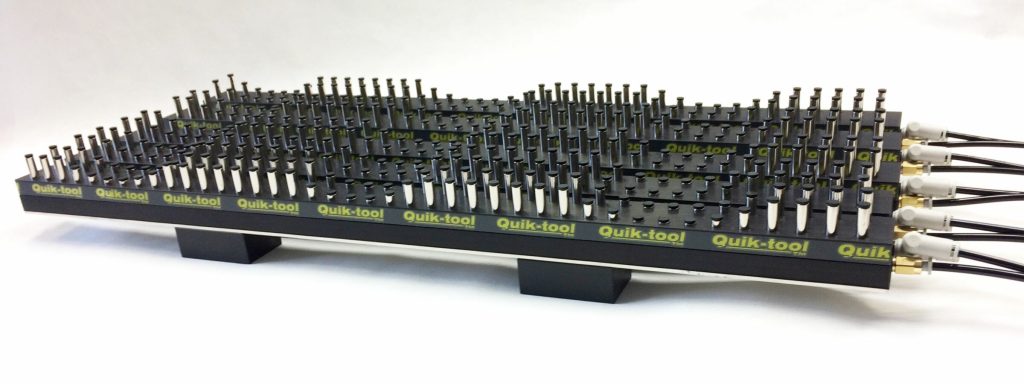

Quik-Tool’s support modules conform to any PCB, single or double-sided, without manual pin placement or programming. Boards are supported automatically and consistently, cutting changeover time dramatically while protecting components from the cracked joints that come with misplaced hard tooling pins.
Key Features:
- OPTI-FLOW Technology – Add or remove modules with zero airflow adjustments, unlike systems that need constant manual tweaking
- Mistake-Proof Connections – Male/female fittings make it physically impossible to plug a module in wrong
- Industry-Leading Holding Force – Patent-pending locking technology secures boards without over-stressing thin or routed panels
- Durable Pin & Tip Design – Heavier pins that won’t bend, tips that won’t fall off, and tips that swap out without removing the pin
- Scalable by Design – Start with a kit and add modules as production needs grow
With broad compatibility across major printer and placement platforms, Quik-Tool turns tooling changeover from a bottleneck into a non-issue.
