SPEA

Key Features:

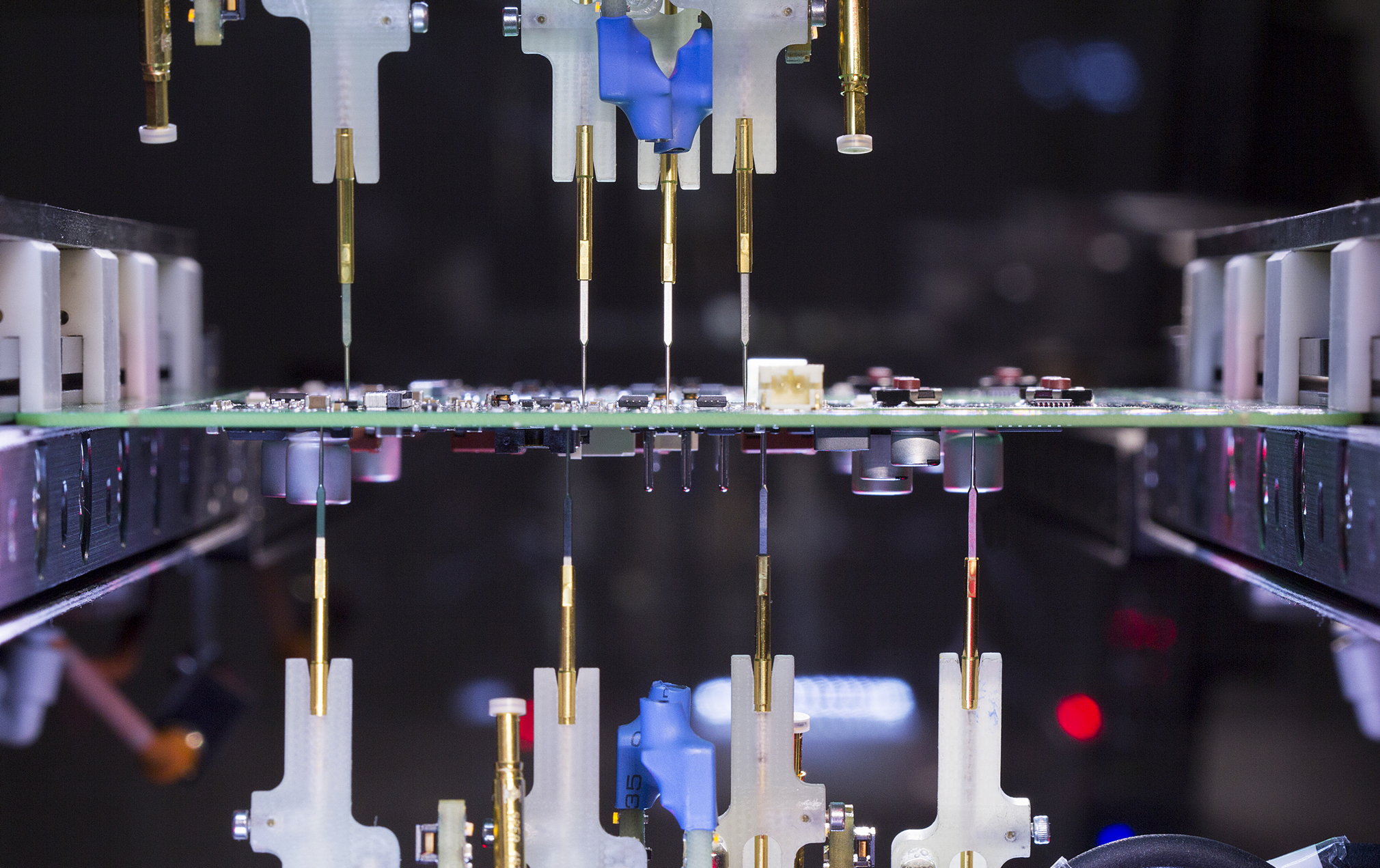

• Top-Performance Linear Motors – Deployed on all X, Y, and Z axes for maximum speed and precision.
• Highest Speed of Movement – With optimized probe routing to minimize cycle time.
• Mechanical Stability Over Time – Ensures consistent performance test after test.

This linear motor foundation is what allows SPEA testers to sustain both very high speed and long-term mechanical accuracy.

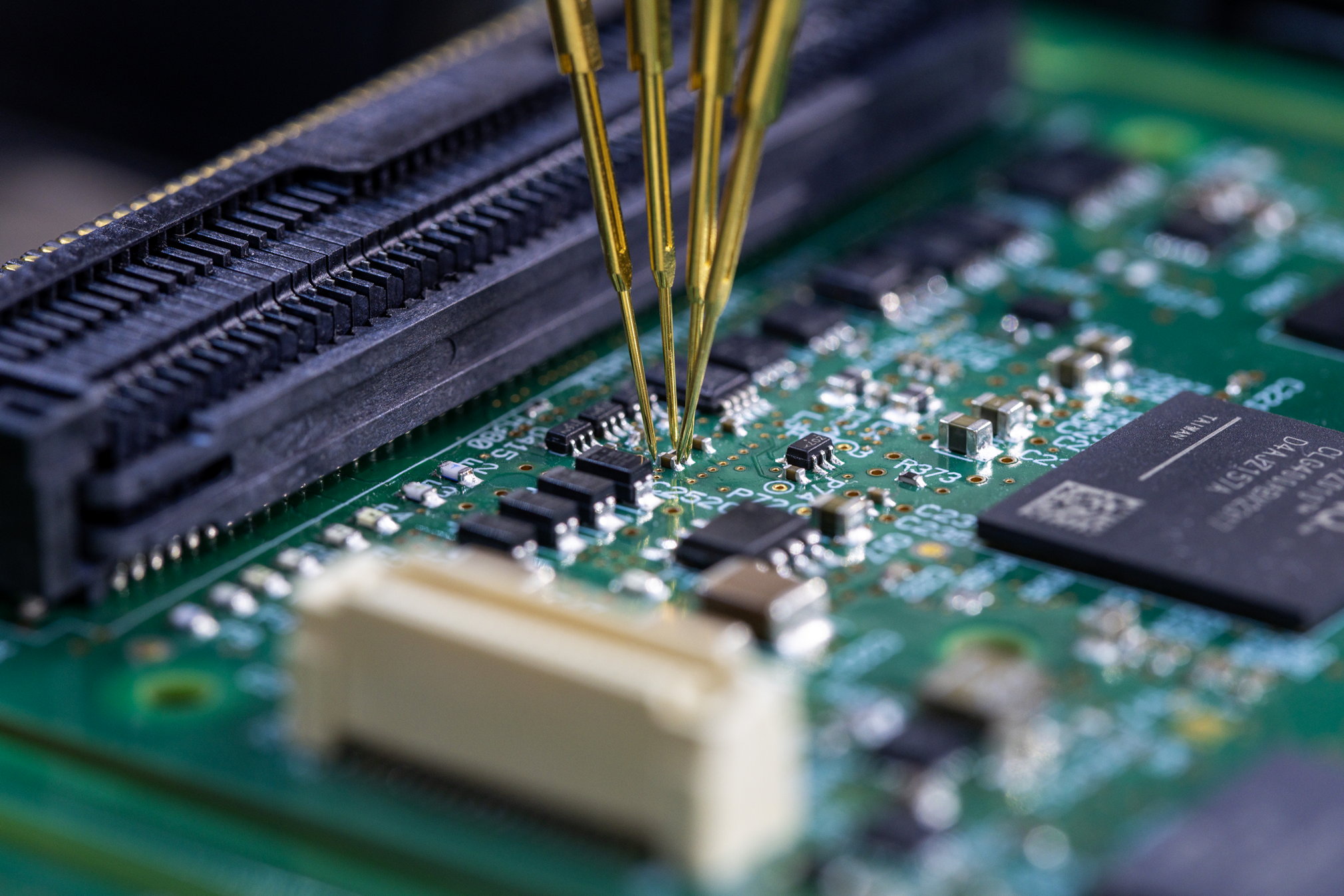

The shorter the distance between probe and instrument, the faster and more accurate the measurement. Following this principle, SPEA’s Flying Tester Technology places force and measurement instruments directly on each flying head.

Key Features:

• Highest Measurement Performance & Accuracy – Down to 0.1pF.
• Signal Integrity – With no measurement degradation or interference.
• Immediate Signal Acquisition – Reduces measurement acquisition time to a few microseconds.
• Better Repeatability – Consistent, dependable results test after test.

• Top-Performance Linear Optical Encoders – Fitted on all X, Y, and Z axes for real-time positioning feedback.

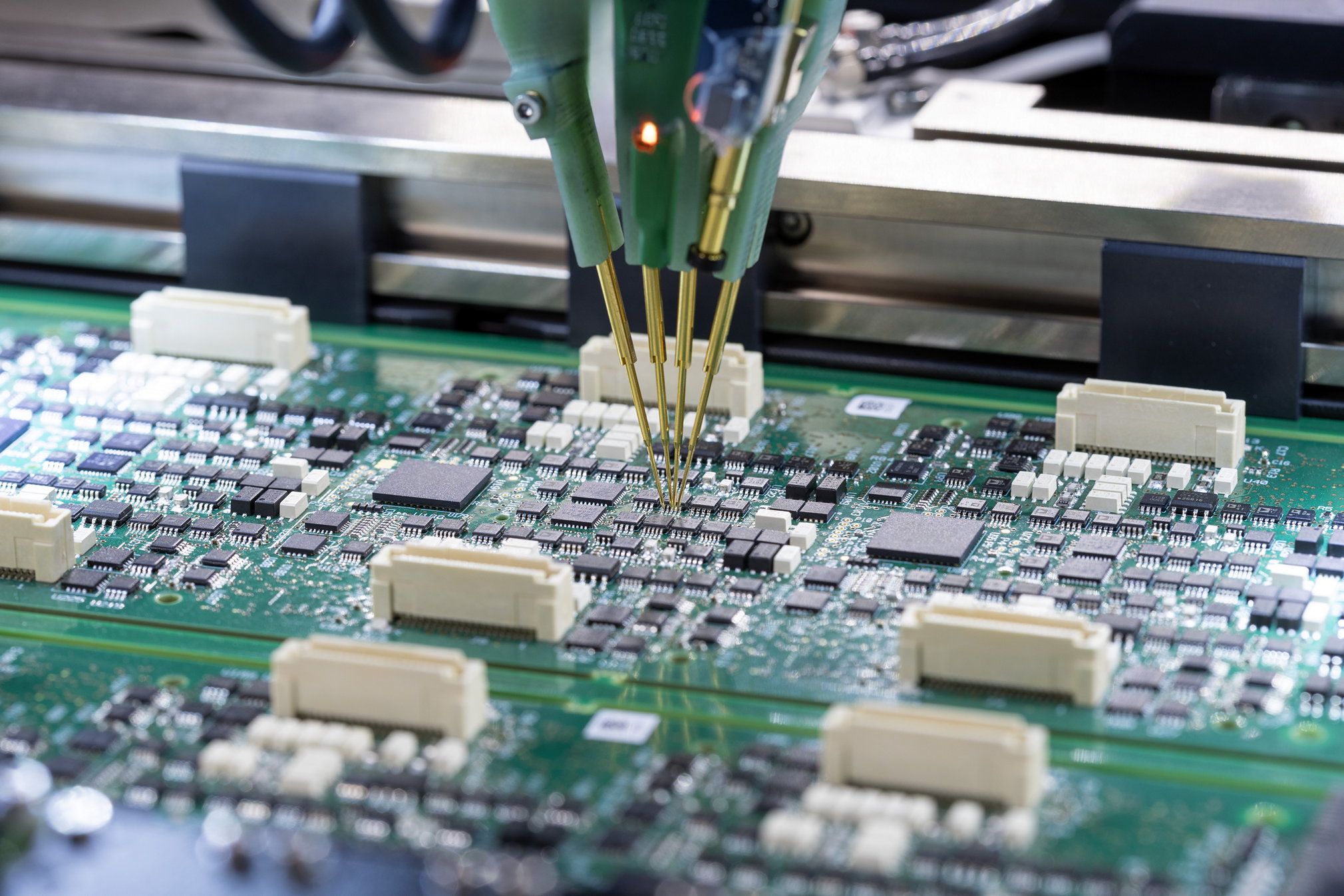

• Micro-SMD Contacting – Accurately contacts 008004 pads and smaller.
• Reliable Testing of Delicate Boards – Supports flexible and thin printed circuits, as well as Sticky Boards.
• Long-Term Positioning Stability – Maintains measurement stability over extended use.
• Ultra-Fast Soft-Touch Technology – Contacts boards without touch damage or stress on the PCB or micro-SMD components.

SPEA’s innovative multi-process platform manages the concurrent execution of multiple test techniques, optimizing the test program within a single, friendly yet powerful software environment.

Key Features:

• In-Circuit Test – Powered-up or not, for comprehensive board-level verification.
• Short Circuit & Open Pin Scan Testing – 100% short circuit test coverage alongside open pin scan.
• Optical & Functional Testing – Color optical test and full functional test in the same program.
• Boundary Scan & Nodal Impedance Test – Extending coverage to complex digital and impedance-sensitive nets.

Four Machines, From NPI to High-Volume Production

Customers can choose the flying probe tester that best matches their production, based on throughput requirements, single- or dual-side board contacting, and product type.

Platforms:

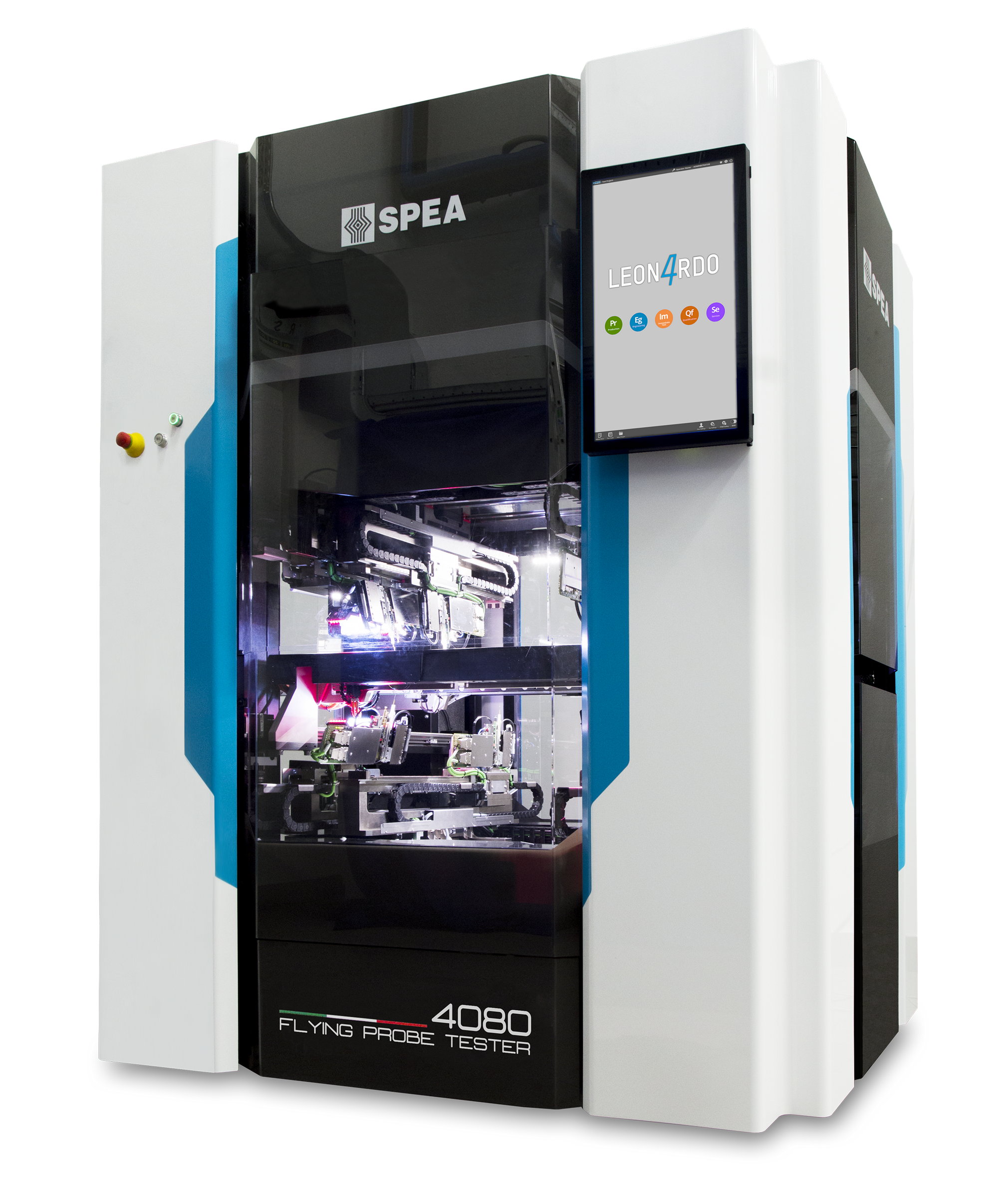

• 4080 – SPEA’s highest-throughput and highest-accuracy model, with 8 multi-function dual-side flying heads (4 top + 4 bottom), up to 180 touches/sec, a minimum pad size of 50 µm, and a natural granite chassis for vibration-free high-speed probing in a 2.2 m² footprint.
• 4060 S2 – A 6-axis dual-side tester (4 top + 2 bottom heads) with an extra-large test area up to 1,524 × 610mm and an extended input conveyor for comfortably loading large, heavy boards.

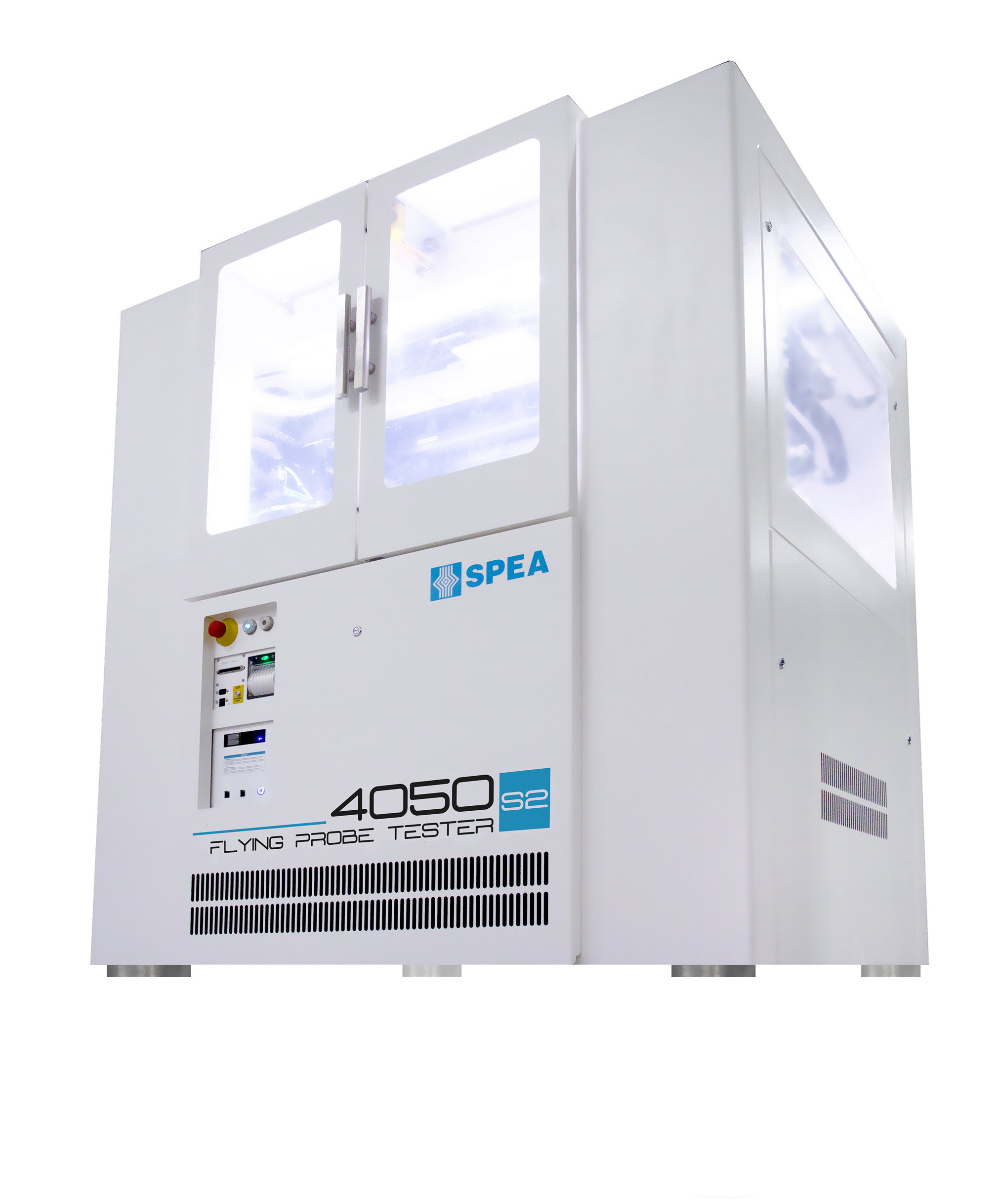

• 4050 S2 – A 4-axis tester for medium-to-high-volume production, with very high probing speed, automatic and manual board loading, and a multi-jig bottom moving platform to extend probing capabilities.
• 4020 S2 – A 4-axis tester designed for NPI, prototypes, and medium-volume production, delivering a wide range of test capabilities and high probing accuracy in a cost-saving multifunction package.

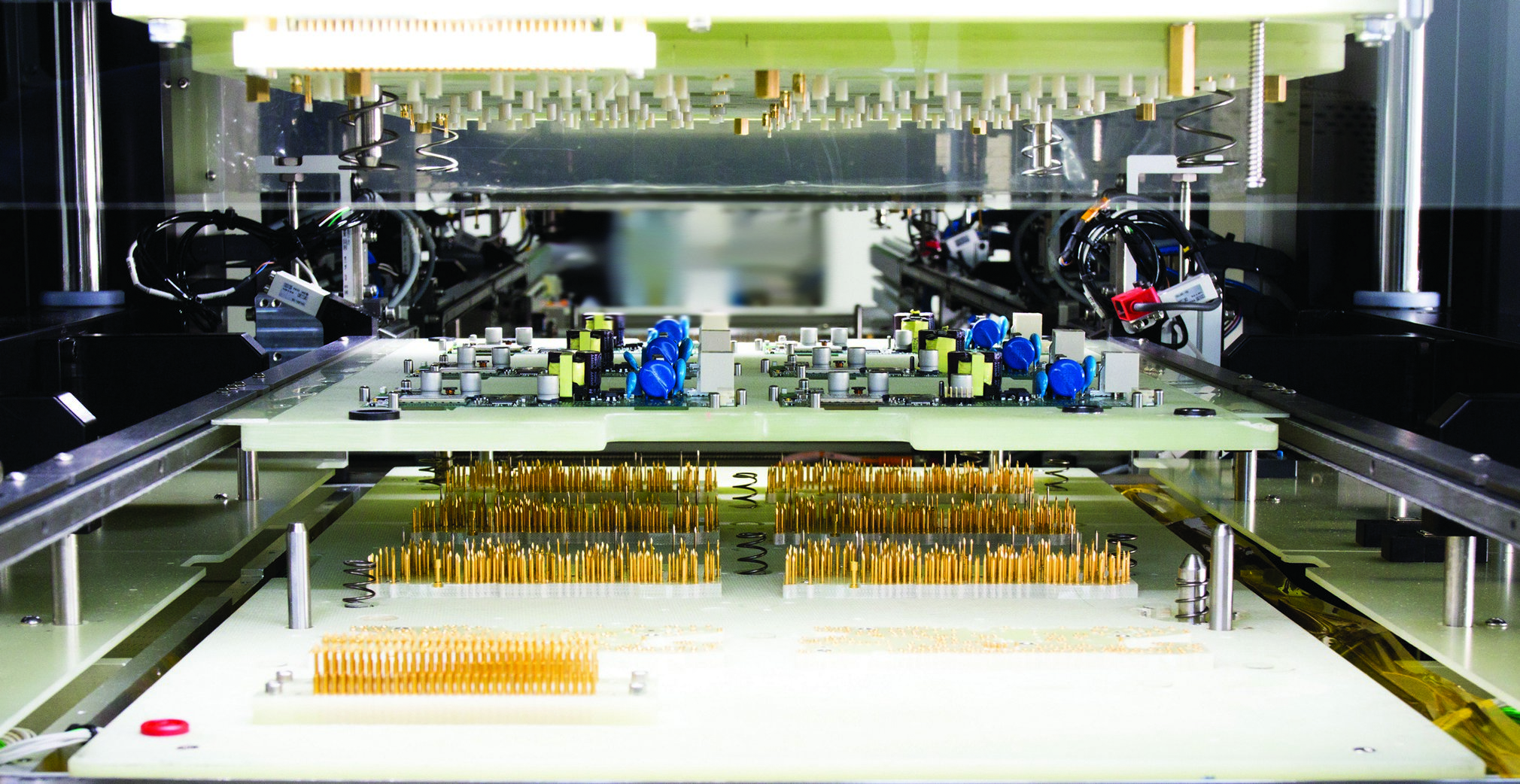

SPEA flying probe testers can be equipped with a wide range of top and bottom jigs, enabling the simultaneous performance of different test techniques with 100% reliability.

Key Features:

• Expanded Tooling Options – Light Meter, Laser, Multiprobe Unit, Support Rod, and Color Camera can all be mounted on a flying head.
• 3D Laser & Waveform Capture – Adds advanced measurement techniques alongside standard probing.
• LED Light Test & On-Board Programming – Extends test coverage to optical and firmware-level checks.
• Built-In Self-Test & Thermal Test – Supports system verification and thermal characterization in the same platform.
